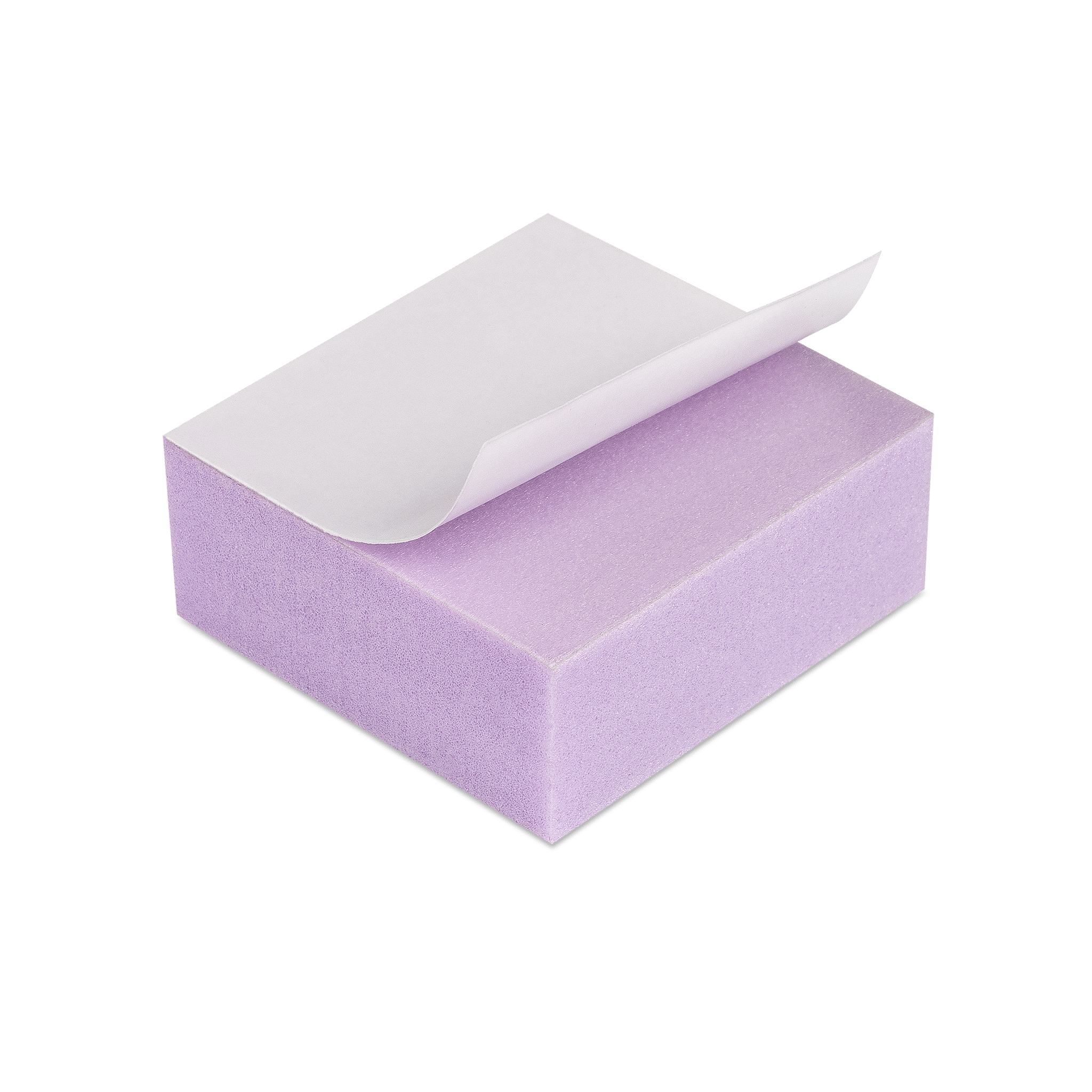

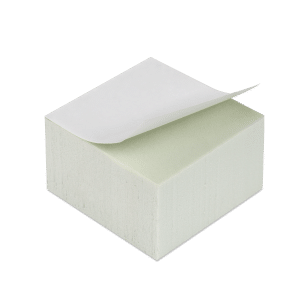

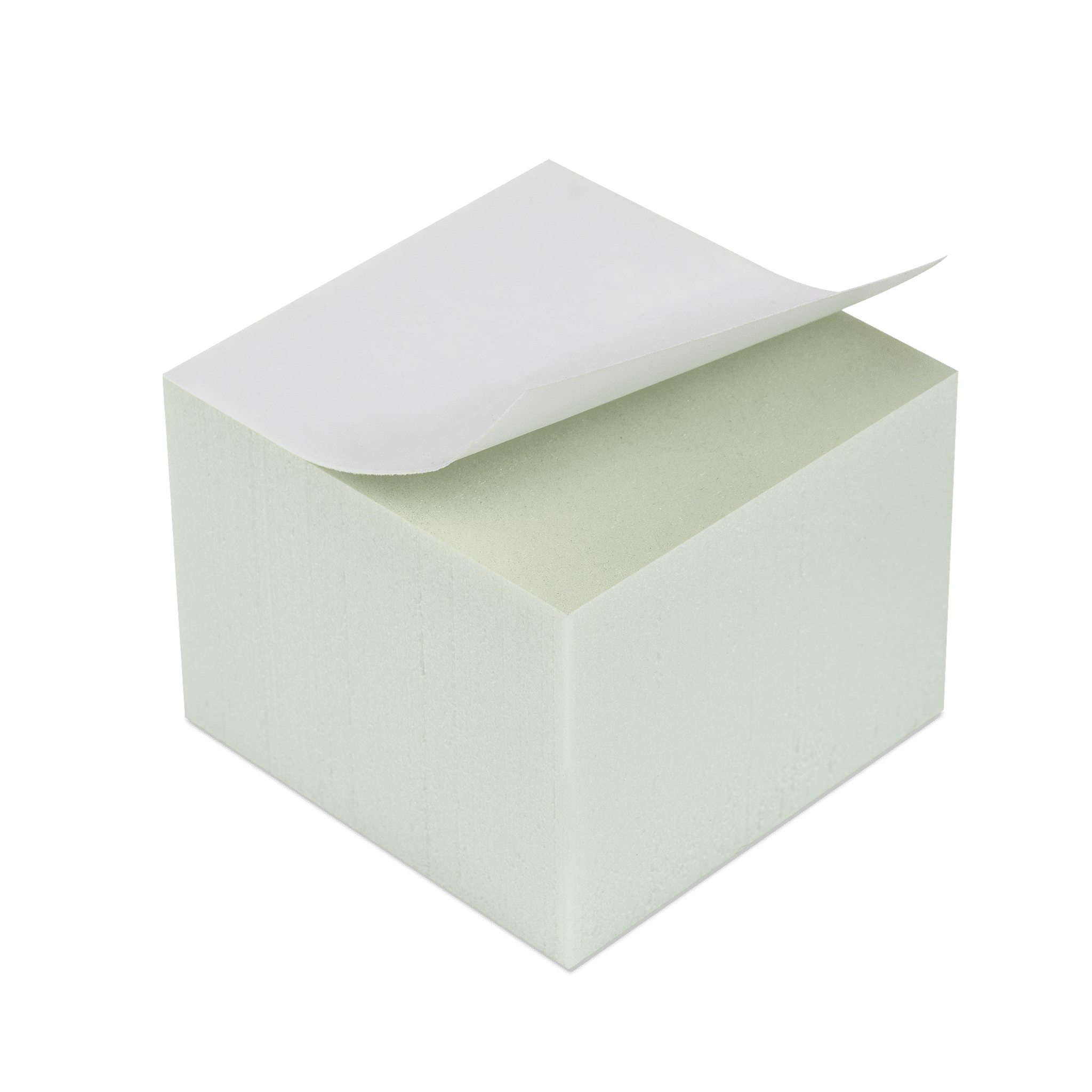

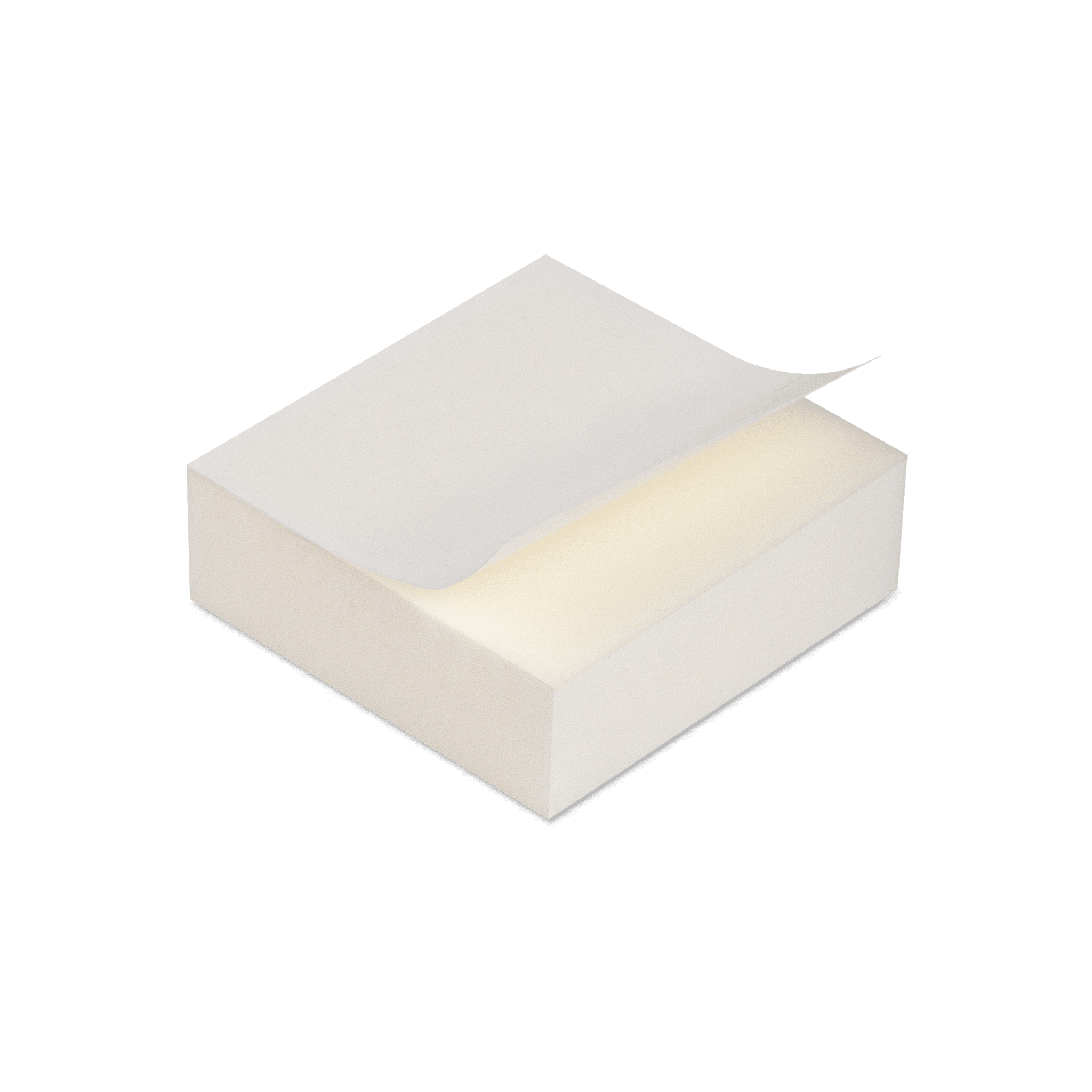

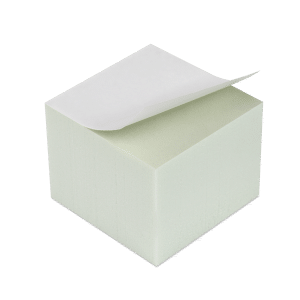

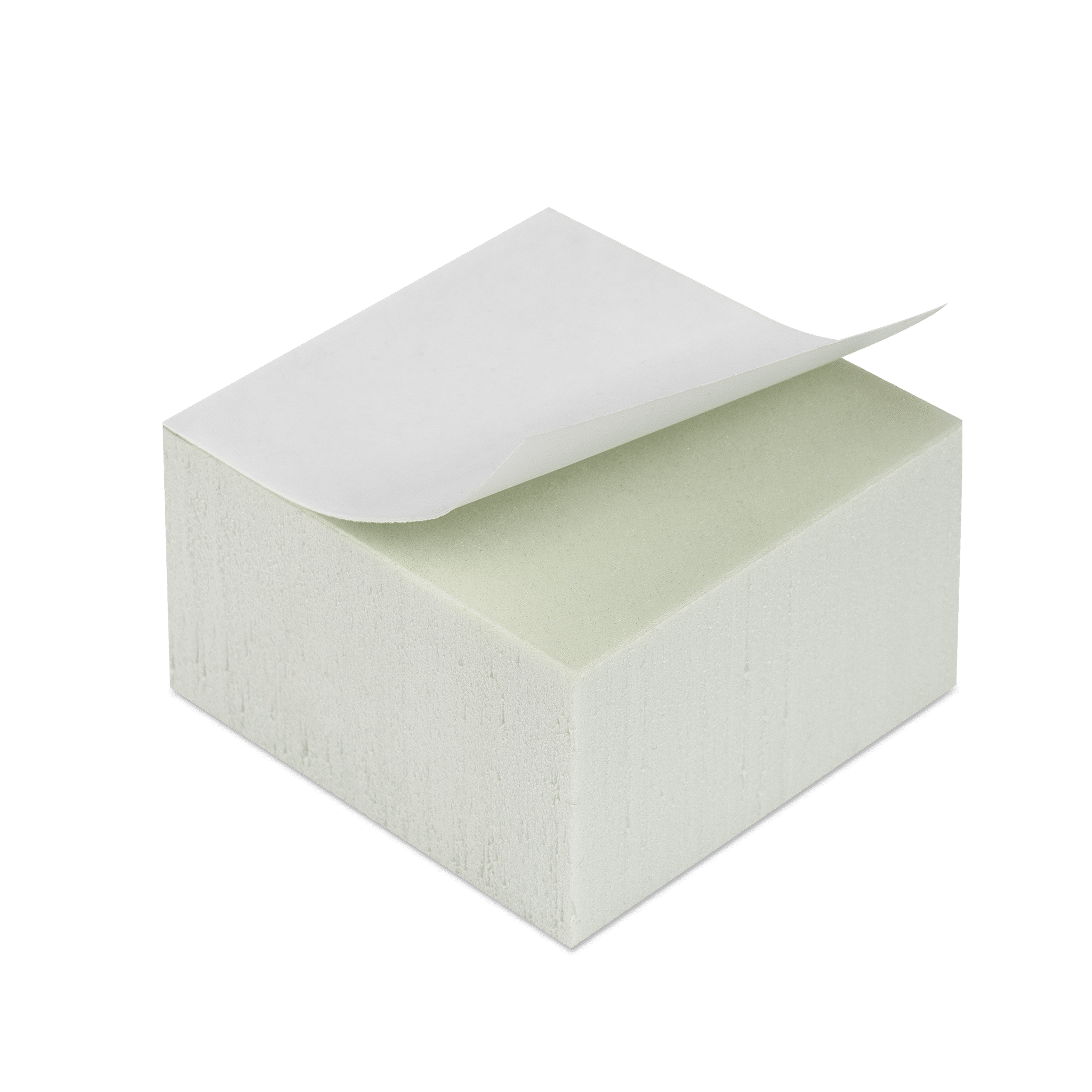

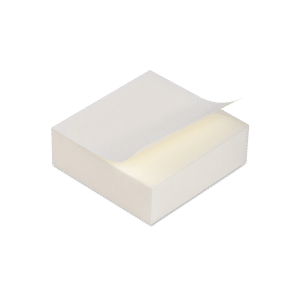

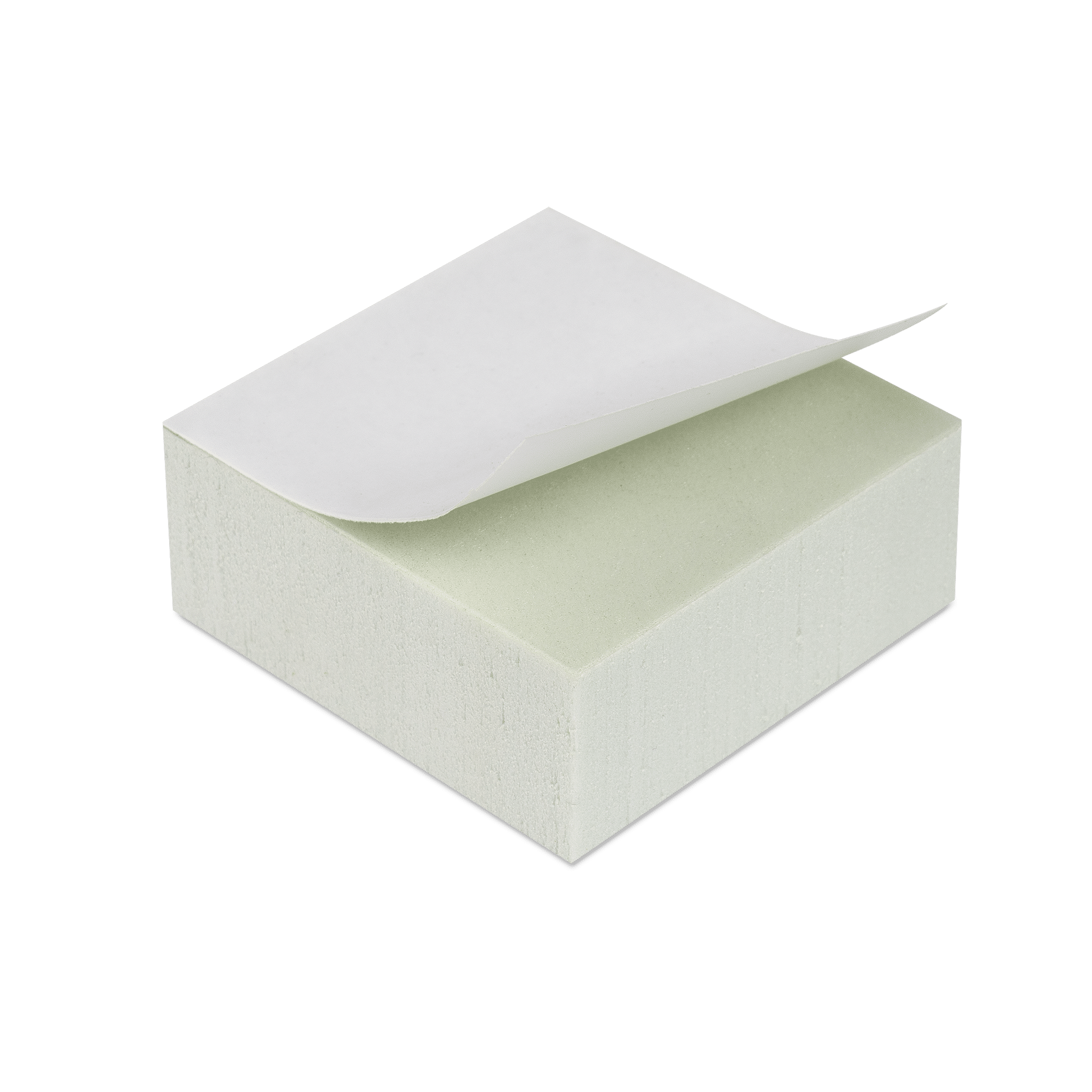

VITO-XPS

Spacer Pads

High compressive strength and repositionable

The product consists of polystyrene hard foam, equipped with a low tack pressure sensitive adhesive on one side.

Application

VITO-XPS Abstandhalter / Spacers are used for spacing and stacking. The preferred use is the application on plastic / PVC windows without protection film and for varnished surfaces

Product benefits

  • Repositionable
  • Removable without leaving markings and residues
  • high compressive strength

Processing instructions

Den Papierliner mit dem Daumen von der Kante des Abstandshalters abheben. Weitere Verarbeitungsparameter und Informationen zur Reinigung der zu verklebenden Oberflächen entnehmen Sie bitte unseren Processing

Storage and shelf live

12 months after receipt of goods, when stored non processed, at room temperature and 60 % relative humidity, in original packaging

Bildschirmfoto 2020-03-30 um 17.13.11

Technical data and product properties

thickness

2 mm

30, 40, 50 mm

colour

light purple

lime green

density (DIN EN ISO 845)

44 kg/m³

33 kg/m³

Maximum pressure load* (derived from compression hardness according to DIN EN ISO 3386)

100 kPa (a)

350 kPa (b)

Dimensions

50 mm x 50 mm

50 mm x 50 mm

temperature resistance

-40 °C to 50 °C

-40 °C to 50 °C

Application temperature

15 °C to 30 °C

15 °C to 30 °C

* Entspricht einer Stauchung von weniger als 2 % und einer Gewichtsbelastung von a) rund 25 kg und b) rund 90 kg bezogen auf einen Abstandhalter.

Individual

You cannot find the right product?
Would you like a different thickness, width or even cutting dies?
Sie benötigen einen speziellen Klebstoff für Ihre Anwendung?
Would you like to have your own company branding?



We manufacture individual solutions, depending on the quantity.
Uncomplicated and perfectly designed for your use.

Talk to us!
