VITOMOUNT

125 SA-220

Double-sided adhesive foam tape for high demands, used for fixing trims in the automotive industry.

Application

125 SA-220 is used for fixing trims in the automotive industry.

Product benefits

  • high final adhesion strength
  • very good aging, weathering and plasticiser resistance
  • compatible with usual acrylic glass
  • compatible with usual acrylic glass

Processing instructions

The most important processing parameters and information on cleaning are listed in our Information on Processing Adhesive Tapes. Processing

Storage and shelf live

12 months after receipt of goods, when stored non processed, at room temperature and 60 % relative humidity, in original packaging

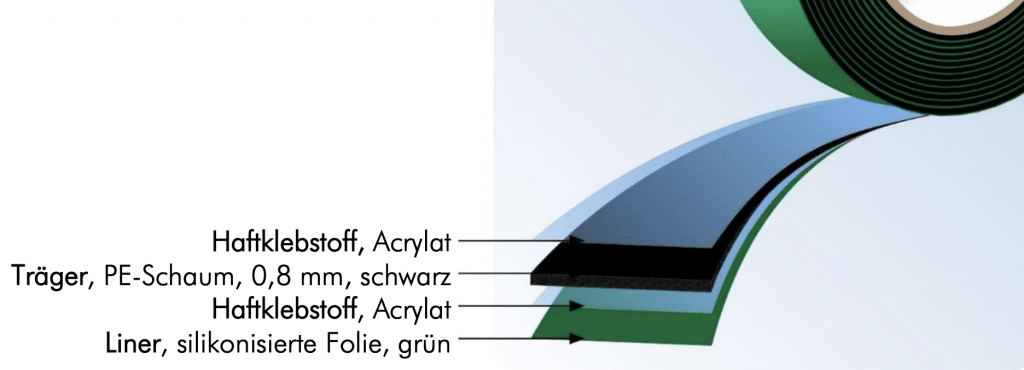

Bildschirmfoto 2020-03-31 um 15.13.51

Technical data and product properties

Peel adhesion on stainless steel
acc. to DIN EN 1939:1996

at 20 °C

18 N / 25 mm

shear adhesion on steel
acc. to DIN EN 1943:1996

at 20 °C
at 50 °C
at 70 °C
bei 100 °C

50 N / 625 mm²
30 N / 625 mm²
20 N / 625 mm²
10 N / 625 mm²

compatibility with acrylic glass

good

plasticizer resistance

very good

temperature resistance

-40 °C bis 90 °C, kurzfristig 100 °C

application temperature

15 °C to 30 °C
